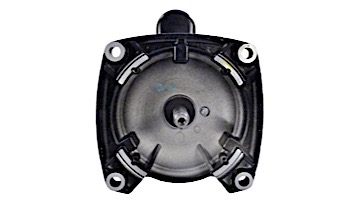

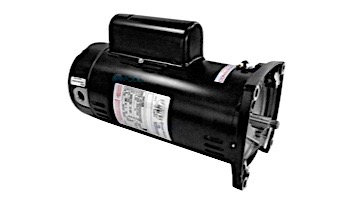

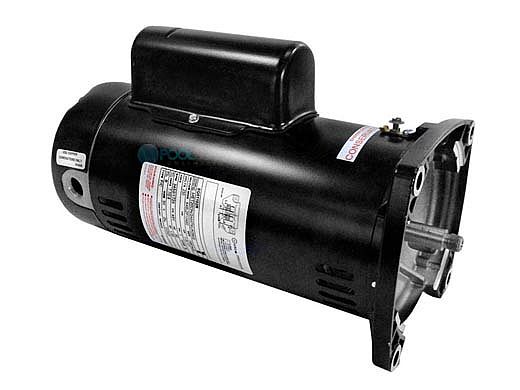

Home Replacement Square Flange Pool & Spa Motor | 1HP Energy Efficient 2-Speed | 48 Frame Full-Rated | 230V | SQS1102R

Replacement Square Flange Pool & Spa Motor | 1HP Energy Efficient 2-Speed | 48 Frame Full-Rated | 230V | SQS1102R

Name: Replacement Square Flange Pool & Spa Motor | 1HP Energy Efficient 2-Speed | 48 Frame Full-Rated | 230V | SQS1102R
Brand: A.O. Smith
SKU: 5327
Availability: InStock

$506.78

Replacement Square Flange Pool & Spa Motor | 1HP Energy Efficient 2-Speed | 48 Frame Full-Rated | 230V | SQS1102R

Two Compartment Square Flange Pool Motor - Two Speed

Features

All Copper Windings
Auto Protector - Single Phase
Open Dripproof
Rotation: CCW Pump End
Class B Insulation
50°C Ambient
UL1081
60 Hz
303 Stainless Steel Threaded Shaft
Energy Efficient Capacitor Start Low Speed, PSC High Speed

Two-speed motors are shipped less hi/lo switch for remote operation.

End cover and switch assembly kit number 615332 available and sold separately.

Specifications:

HP:	1.0/.17 HP
Energy Efficiency:	Standard
Frame:	48Y
Enclosure:	Open Drip Proof
Phase:	1
Voltage:	230V
Frequency:	60 Hz
Speed:	2-Speed
RPM:	3450/1725
Rating:	Full-Rated, F/C
Service Factor:	1.9
THP:	1.65
Shaft Type:	Threaded
Mounting:	Square Flange
Electrical Type:	Psc Low Speed, Cap Start High Speed

Brand: A.O. Smith
